China Brass Angle Valve manufacturer

1/2 * 3/8'' 0.5Mpa 15N.M Water Fill Valve for toilet

Product Details:
Place of Origin: Zhejiang,China
Brand Name: BENSINO
Certification: ISO9001
Model Number: 233N
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: can be negotiated
Packaging Details: Packed in a bag . Then put in a colorful paper box
Delivery Time: 15-25 work days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 Piece/Pieces per Day

Detail Information

Material: Brass+Aluminum Handle Size: 1/2*3/8
Color: Silver Weight: 145g
Style: Modern Surface Finish: Polished+chrome Plating
Customized: OEM & ODM Are Welcomed Samples Time: 15 Days-New Mould
High Light:

1/2 * 3/8'' 0.5Mpa water fill valve


15N.M water fill valve


15N.M toilet angle stop valve

Product Description

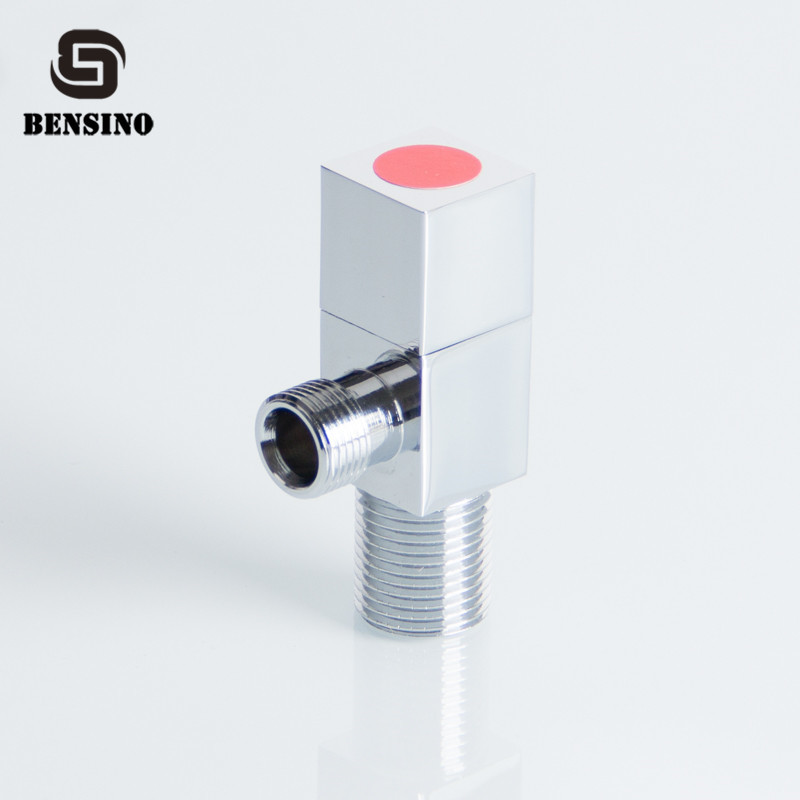

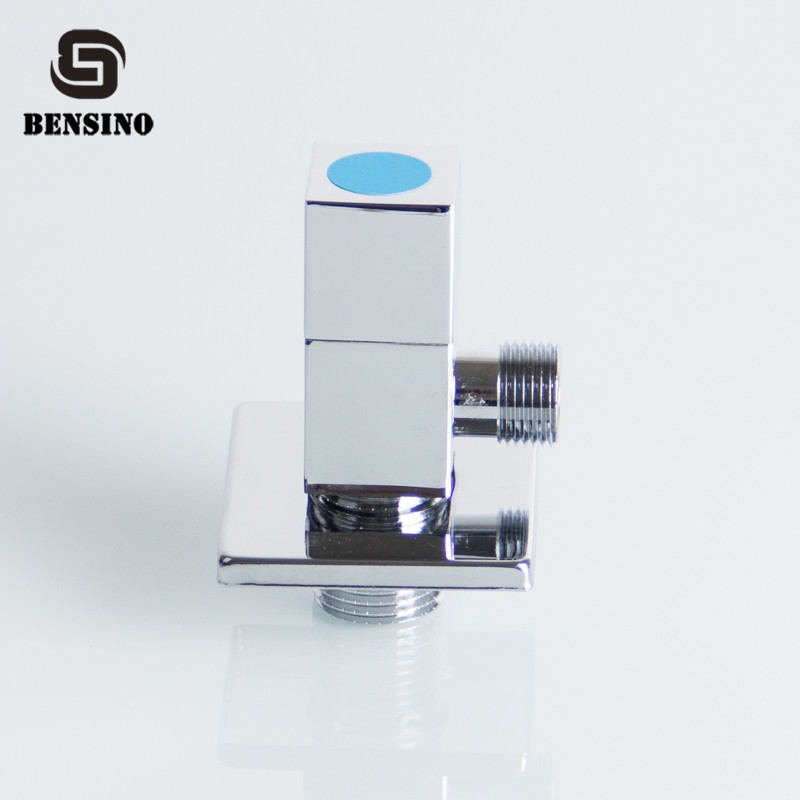

1/2 * 3/8 Inch Brass Quick Water Adjustable Fill Angle Valve Toilet

(Model NO:233N)


►Product Description


Item Brass Angle Valve
Modle 233N
Size 1/2 * 3/8
Color Silver
Material Brass
Weight 145g
Surface Polished+Chrome Plating
Open Method Quick Open
Style Morden
Installation Screw Installation
Connection Internal Thread Connection
Fuction Water switch for toilet, water heater, etc
Quality Guarantee 3 Years
OEM/ODM OEM & ODM Are Acceptable
Port Ningbo / Shanghai


►Product Features


High quality brass material, thick and durable.

Multilayer electroplating is not easy to rust and wear resistant.

Copper shell ceramic disc spool switch is leakproof

Cold and hot water color identification, red and blue marking on the top of angle valve





1/2 * 3/8'' 0.5Mpa 15N.M Water Fill Valve for toilet 01/2 * 3/8'' 0.5Mpa 15N.M Water Fill Valve for toilet 1


►Technical Specifications


Working Water Pressure 0.05-0.8Mpa
Cartridge Life Time No Leakage After 500,000 Times Using
Water Press For Leakage Test 10Kgs, No Leakage
Water Flow Angle Valve≥4L/ Min
Maximum Temperature 90 ℃
Max.Turnimg Angle 90 Degree
Burst Test Pressure Static Water Pressure Max,3.5Mpa
Break Torque Test ≥15N.M
Lever Torque Test 0.08-0.18N.M,Left And Right Rotation Torque Test When Static


►Packaging & Delivery

Packing:Packed in a bag . Then put in a colorful paper box.
Delivery:15-30 days after payment.
Sophisticated and professional logistic agent.
Well-trained and disciplined packing team.
After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


►Competitive Advantages

1 , High quality product and competitive price
2 , Reply within 2 hours
3 , Good after-sale service
4 , Flexible payment terms
5 , Our products have been exported to UK, France, Germany,USA, Italy, Korea,Vietnam and many other countries.
