China Brass Angle Valve manufacturer

Blue Chrome Plated 5bar 12 X12 Brass Angle Valve

Product Details:
Place of Origin: Zhejiang,China
Brand Name: BENSINO
Certification: ISO9001
Model Number: 213B
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: can be negotiated
Packaging Details: Packed in a bag . Then put in a colorful paper box
Delivery Time: 15-30days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 Piece/Pieces per Day

Detail Information

Body Material: Body Material Handle Material: Plastic
Pipe Diameter: G1/2 Accessories: Stainless Steel Decorative Cover
Color: Silver Surface Preparation: Chromate Finish
Open Method: Quick Open Installation: Screw Installation
High Light:

5bar Brass Angle Valve


12 X12 Brass Angle Valve


12 X12 chrome plated angle valve

Product Description

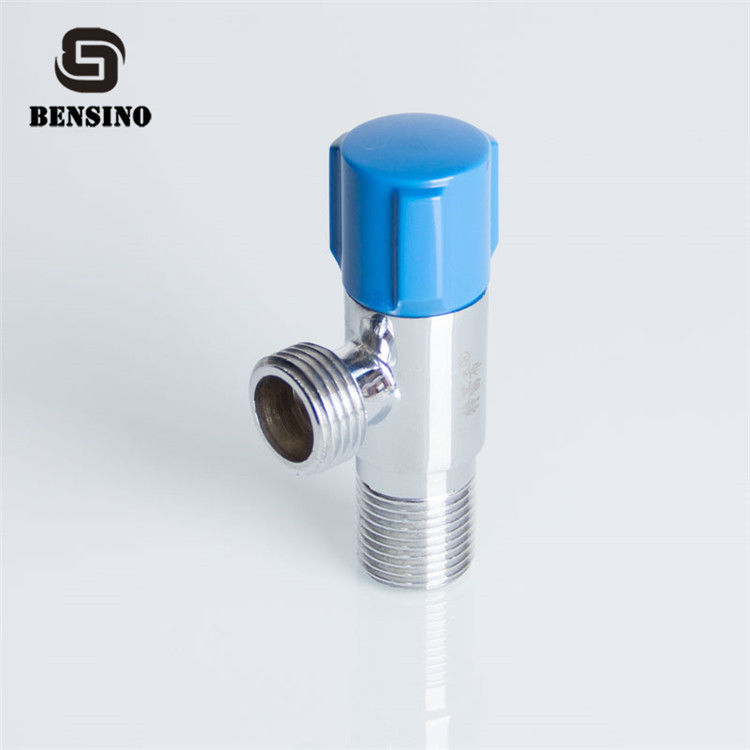

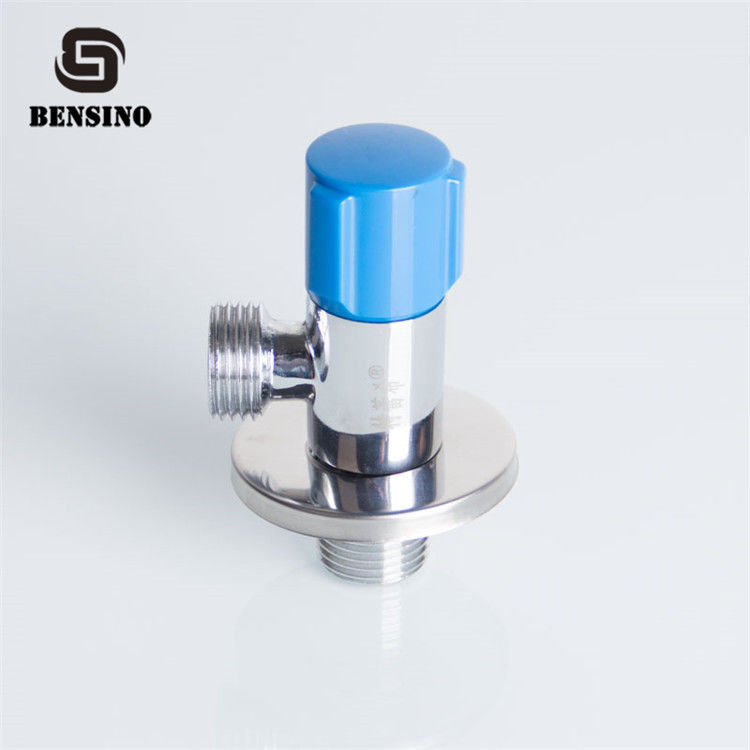

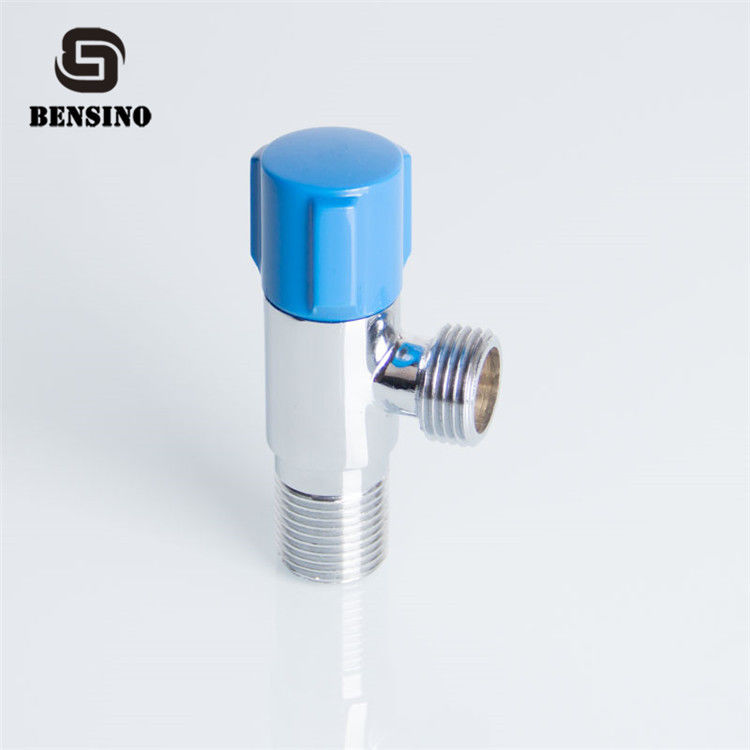

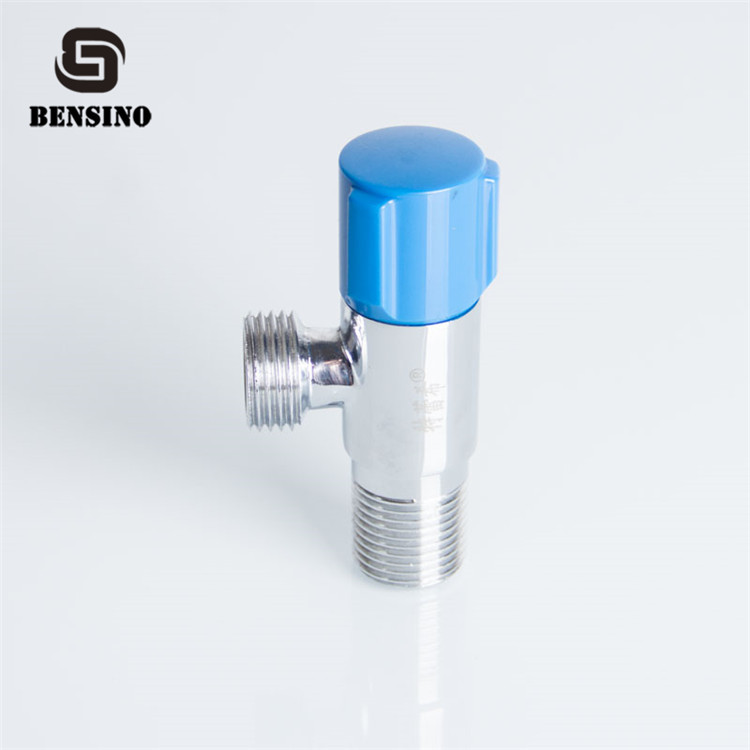

Blue Plastic Handle Chrome Plated Brass Angle Valve 1 2 X1 2 Water Heater Service Valves​​
(Model - 213B)
►Product Description
Model 213B
Size 1/2 inch
Material Blue PVC Handle,Copper Body
Weight 145g
Accessories Stainless Steel Decorative Cover
Brand BENSINO Or Customized Logo
Style Morden
Surface Finish Polished+Chromed Finish
Opening Way 1/4 Turn Quick Open
Connection Female Thread X Female Thread
Fuction Water Flow Adjustment
Application Toilet, Faucet, Washing Machine,Water Heater,Etc
Quality Guarantee 3 years
►Product Features
1, High-Quality Brass
2, High Pressure Resistant Ceramic Valve Core
3, High Quality Sealing Washer
4, Polishing And Chrome Plating Process
5, Anti-Leakage
6, Accurate Thread,BSP Or NPT Standard
7, Good Tensile Strength
8, Heat-Resistant
9, Corrosion-Resistant Valve
10, Impact Wear-Resistance
11, Long Lifespan
12, Easy Installation
Blue Chrome Plated 5bar 12 X12 Brass Angle Valve 0Blue Chrome Plated 5bar 12 X12 Brass Angle Valve 1


Technical Specifications
Testing Pressure 100% Tested
Burst Test Pressure Static Water Pressure Max,3.5Mpa
Break Torque Test ≥15N.M
Lever Torque Test 0.08-0.18N.M,Left And Right Rotation Torque Test When Static
Sealing Test Static Pressure 0.8Mpa,Holding Time 60S,No Deformation,No Leakage
Flow Rate Test The Flow Rate Is Tested Under 0.3PA,The Average Flow Rate 40L/Min
Life Test 500,000 Open And Close Cycles
Maximum Temperature 90 ℃
Max.Turnimg Angle 90 Degree
Working Pressure 1-5 Bar


►Product Function


1, Connection:Connect Water Inlet Ports Of Faucets, Toilets, Washing Machines And Water Heaters,Etc.

2, Regulation:Water Flow Adjustment,Water Pressure Control.

3, Check: Close The Angle Valve When The Hose Leaks Or Other Problems Occur.


►Packaging & Delivery
Packing:Packed in a bag . Then put in a colorful paper box.
Delivery:15-30 days after payment.
Sophisticated and professional logistic agent.
Well-trained and disciplined packing team.
After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
►Competitive Advantages
1 , High quality product and competitive price
2 , Reply within 2 hours
3 , Good after-sale service
4 , Flexible payment terms
5 , Our products have been exported to UK, France, Germany,USA, Italy, Korea,Vietnam and many other countries.
