China Brass Angle Valve manufacturer

Zinc Handle 9.6CM 3.5Mpa Angled Washing Machine Valve

Product Details:
Place of Origin: Zhejiang,China
Brand Name: BENSINO
Certification: ISO9001
Model Number: 216
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: $2.25-$2.71/pc
Packaging Details: Standard carton packing or custom packing
Delivery Time: 15-30days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 20000 Piece/Pieces per Day

Detail Information

Material: Copper Body,Zinc Alloy Handle Cartridge: Brass Cartridge
Color: Silver Length: 9.6CM
Size: 1/2 Inch Weight: 210g
Style: Modern Simplicity Style
High Light:

9.6CM angled washing machine valve


3.5Mpa angled washing machine valve


3.5Mpa toilet stop valve

Product Description

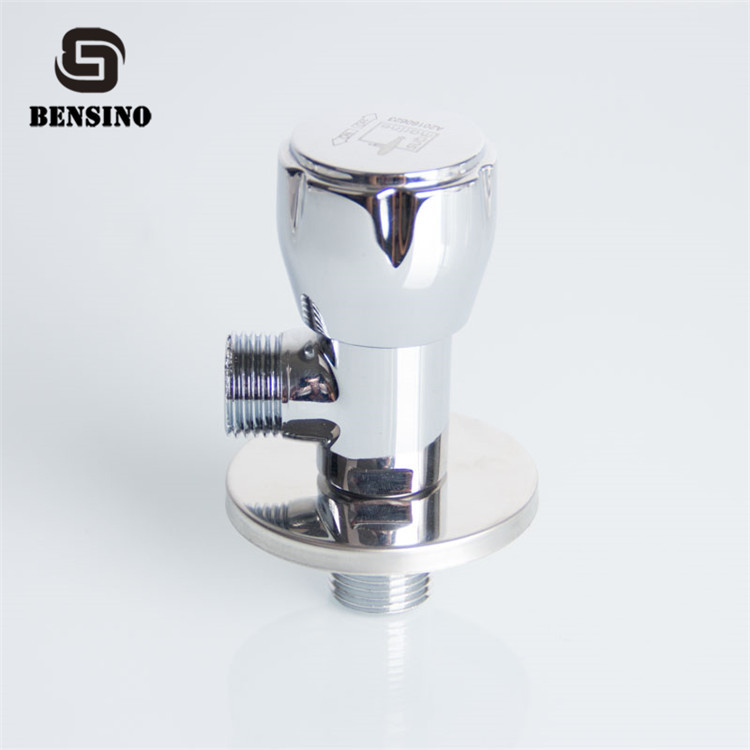

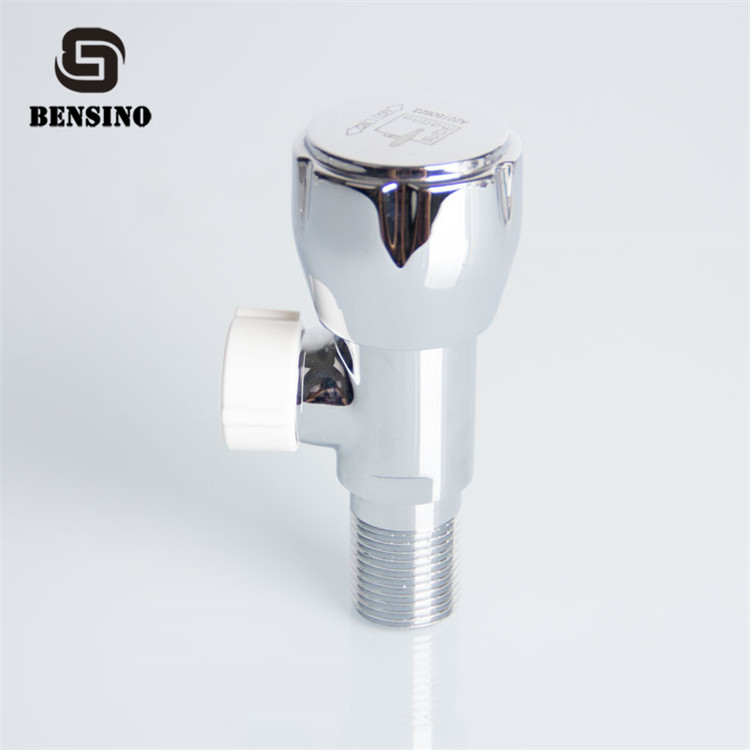

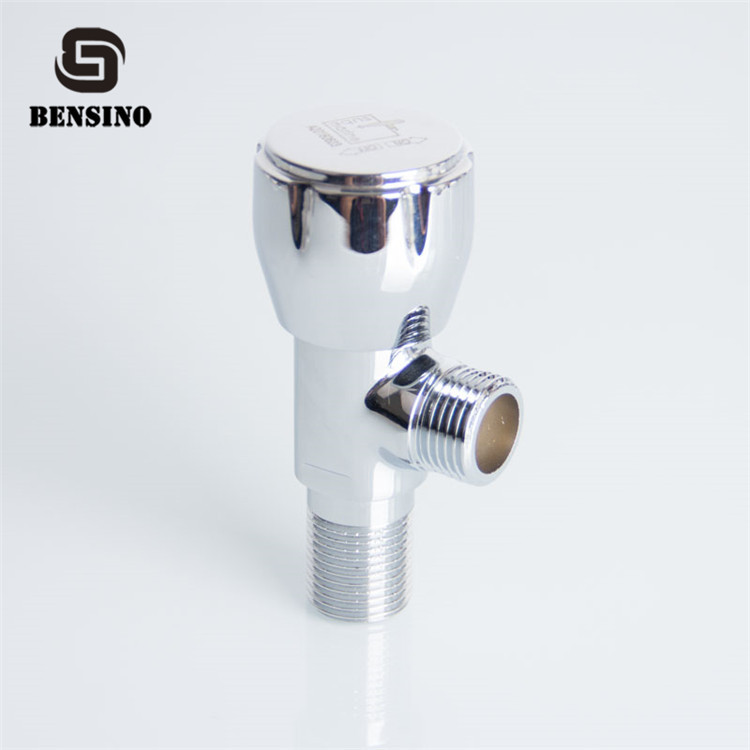

Zinc Handle Brass Angle Valve Washing Machine Valve Toilet Stop Valve

(Model - 216)


►Product Description


Product Name Washing Machine Water Inlet Angle Valve
Model 216
Color Silver
Size 1/2 inch
Material Copper Body,Zinc Alloy Handle
Weight 210g
Surface Treatments Polished Finish
Thread BSP Or NPT
Fuction Threaded On/Off Valves For Water
Medium and  Temperature Hot and cold water less than 90℃
Application Toilet, Faucet, Water Heater, Water Tank,Etc
OEM Acceptable Yes
ODM Acceptable Yes
Samples time 3 days - Current type,15 days-New mould
Quality Guarantee 3 to 5 years depending on the quality level



►Product Features


1, High-Quality Brass

2, Brass Cartridge

3, Drawing Technology

4, Sealed Silicone Washer

5, Multi-Layer Plating,Strong Adhesion,Uniform

6, Leak-Proof Function

7, Accurate Thread,BSP Or NPT Standard

8, High Compressive Strength

9, Good Tensile Strength

10, Heat-Resistant

11, Good Compressive Strength

12, Corrosion-Resistant Valve

13, Long-Term Use

14, Wear Properties

15, Easy To Assemble




Zinc Handle 9.6CM 3.5Mpa Angled Washing Machine Valve 0Zinc Handle 9.6CM 3.5Mpa Angled Washing Machine Valve 1



Technical Specifications
Testing Pressure 100% Tested
Burst Test Pressure Static Water Pressure Max,3.5Mpa
Break Torque Test ≥15N.M
Lever Torque Test 0.08-0.18N.M,Left And Right Rotation Torque Test When Static
Sealing Test Static Pressure 0.8Mpa,Holding Time 60S,No Deformation,No Leakage
Flow Rate Test The Flow Rate Is Tested Under 0.3PA,The Average Flow Rate 40L/Min
Life Test 500,000 Open And Close Cycles
Maximum Temperature 90 ℃
Max.Turnimg Angle 90 Degree
Working Pressure 1-5 Bar


►Product Function


1, Connection:Connect Water Inlet Ports Of Faucets, Toilets, Washing Machines And Water Heaters,Etc.

2, Regulating Effect:Adjust The Water Pressure,Control The Flow.

3, Inspection: Close The Angle Valve For Inspection When Parts Leak Or Have Other Problems.


►Packaging & Delivery


Packing:Standard carton packing or custom packing.

Delivery:15-25 days after payment.

Sophisticated and professional logistic agent.

Well-trained and disciplined packing team.

After-sale service:Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.


►Competitive Advantages


1 , High quality product and competitive price.

2 , Reply within 2 hours

3 , Good after-sale service,We are always here to serve you. Offer you our best quality and service to help you to win in your own market.

4 , Flexible payment terms

5 , Our products have been exported to UK, France, Germany,USA, Italy, Korea,Vietnam and many other countries.


Q: Are you trading company or manufacturer ?
A: We are the Factory.

Q:What are your Main Porducts?

A:Our Main Products include:Brass Angle Valve,Bibcock,Bidet sprayer,Brass Cermaic cartridge,Floor drain and Basin waste,etc
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-25 days if the goods are not in stock, it is according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance ,balance before shipment.
